Facades with profile sheets: strong and versatile
DoorLisa Mandjes
Profile sheets have been used for many years as façade cladding in utility and industrial construction. What started as a practical solution has evolved into a versatile system where technology and design come together.
Thanks to the combination of strength, easy installation, and a wide range of shapes and colors, profile sheets are suitable for a variety of façade applications.
Structure and identification of profile sheets
Façade profiles are identified by product codes such as 35/1035. These indicate the profile height and the effective cover width of the sheet.
The effective width is the usable dimension after overlap and determines installation on the façade. The overlap, often referred to as a lap and trough, ensures that sheets interlock properly and can be installed watertight.
In addition, properties such as pitch and stiffeners play an important role in both the strength and the appearance of the profile.

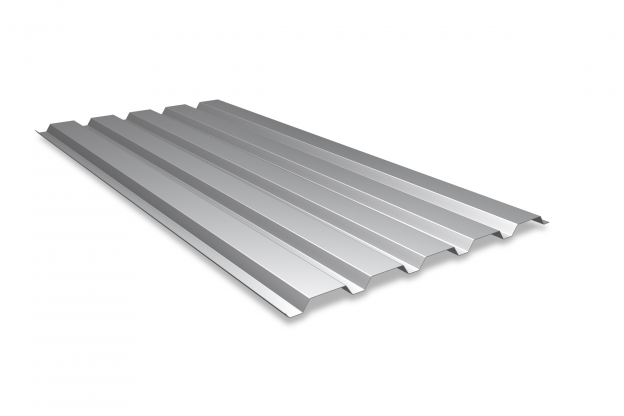

Trapezoidal profiles
Trapezoidal profiles are the most commonly used in façade cladding. Frequently used variants include:
These profiles offer a good balance between load-bearing capacity, efficient material use, and a clean appearance. Their shape makes them suitable for both horizontal and vertical installation.

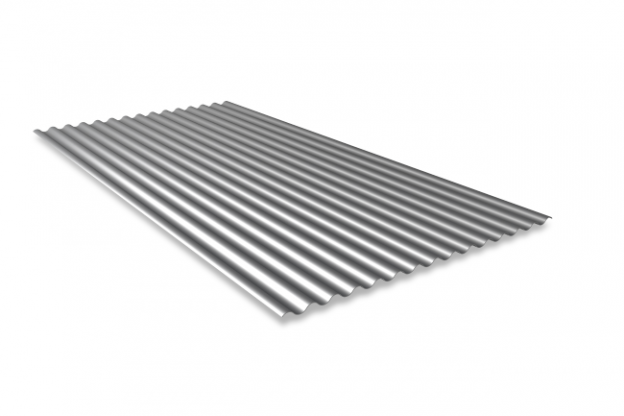

Corrugated profiles
In addition to trapezoidal profiles, corrugated profiles are also used in façades. They have a more traditional and recognizable appearance and are often applied when an industrial or rural character is desired.
Common variants include:
With different heights and combinations of coatings and colors, a wide range of applications is possible.

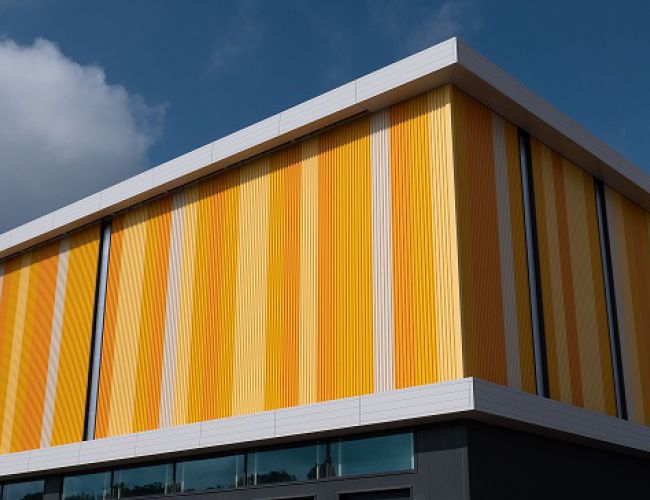

Design freedom and installation
Façade profiles offer a high degree of design flexibility. By varying:
- installation direction
- profile type
- color and coating
- combination with other materials
a façade can easily be adapted to achieve the desired appearance.
In addition to horizontal and vertical installation, angled layouts are also used to create extra dynamics in the façade design.
Profile sheets for façades combine technical performance with design freedom. They provide an efficient and durable solution while contributing to the visual character of a building.
