SAB W 80.1100 – also available in FA

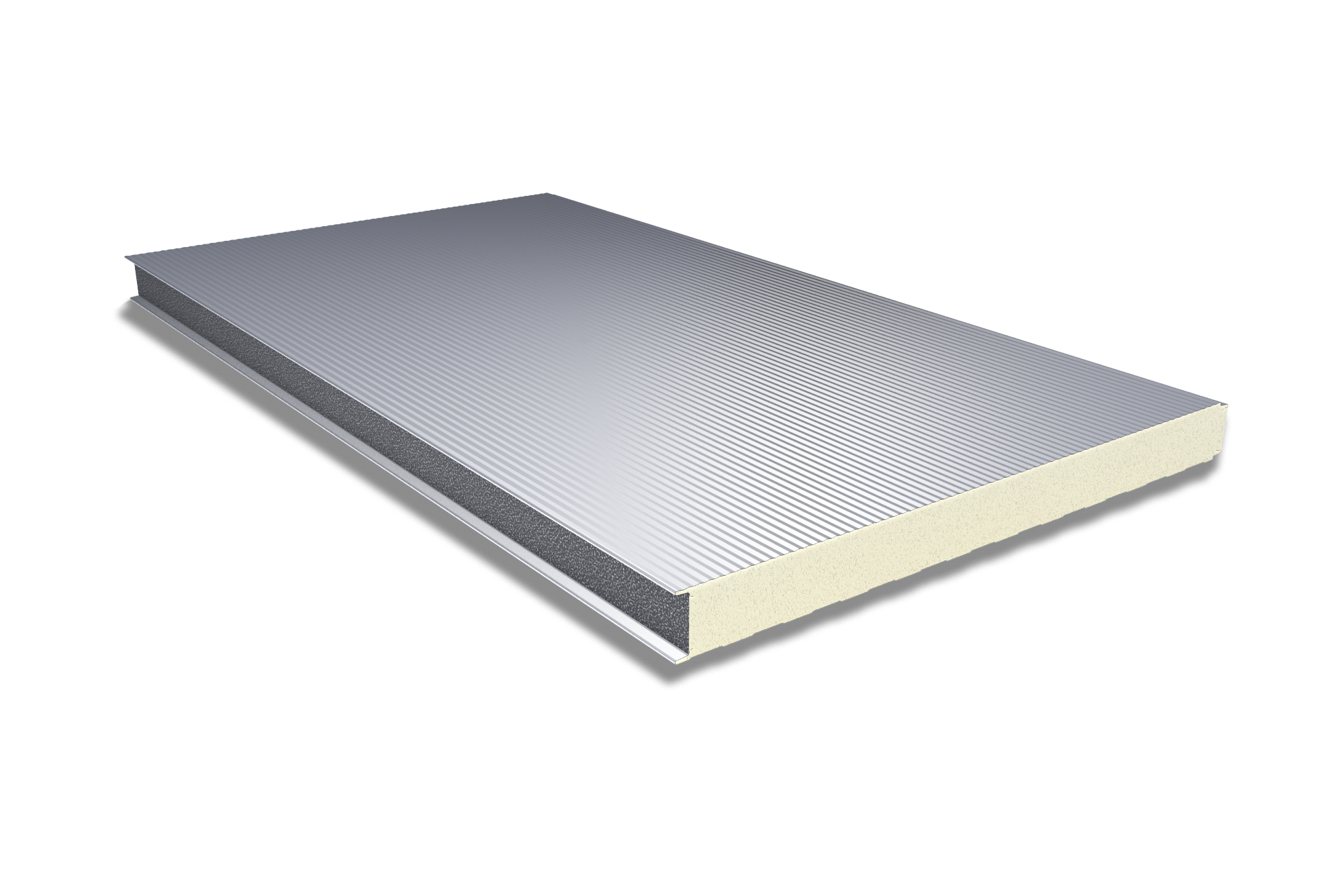

Sandwich panels for the facade or as an interior wall with visibly screwed fixings. With a core thickness of 80 mm the u-value is 0.26 W/m2K . The SAB W 80.1100 is available in FM Approved. Working width is 1100 mm.

Our sandwich panels can be applied both vertically and horizontally, and come in 3 possible ribbings: LL, M8L and M16L. For the new production site in Geldermalsen, our sandwich panels have been completely redesigned. The joint has been optimised for fire, wind and water resistance, and the construction width has been altered to 1100 mm. The seal in the joint is easily compressed and provides airtight qualities even under the slightest compression. Our panels can be provided with a foodsafe coating for applications in the food processing industry.

Request colour samples
Request product samples
Get in touch
Specifications
TypeThickness*Weight*Rc (NTA 8800)Rc (NEN 1068)UMax. Lenght
 mmkg/m2m2K/Wm2K/WW/m2Km
SAB W(-FA) 80.110080 11,03,843,65 0,2616,0

*   Weight with steel exterior and interior skins with gauges of respectively 0.50 and 0.40 mm, other gauges are also possible.

Ribbings
Downloads
Popular colours Colorcoat Prisma
Ariana
Ephyra
Kronos
Orion (RAL 9007)
Sirius (RAL 9006)
Zeus
Alaska Grey-RAL 7000
Anthracite-RAL 7016
(0,50-0,63-0,75 mm)
Black-RAL 9005
(0,63-0,75 mm)
Cream-RAL 1015
Hamlet-RAL 9002
(0,50-0,63-0,75 mm)
Oyster-RAL 7035
(0,63-0,75 mm)
Sargasso-RAL 5003 (0,63 mm)
Slate Grey-RAL 7012
(0,63-0,75 mm)
White-RAL 9010
(0,50-0,63-0,75 mm)
Seren Copper
Colour samples
Popular colours Colorcoat HPS200 Ultra
Anthracite (7016)
Black (9005)
Goosewing Grey(7038)
Hamlet-RAL 9002
(0,5 – 0,63 – 0,75 mm)
Raven (7021)
Reseda Green (6011)
Colour samples
Recommendations

Houd bij het kiezen van sandwichpanelen rekening met bijvoorbeeld de belasting, CC klasse en doorbuigingseisen. Raadpleeg voor technische informatie over PIR, gevel- of dakpanelen het Technisch Handboek van SAB-profiel of bel met de afdeling Product Services (+31 (0) 30 68 79 700). Wil je direct een offerte voor gevelpanelen W ontvangen? Neem dan contact op met de afdeling Verkoop: +31(0)30 68 79 700 of stuur een e-mail via de contactpagina.

Beschermfolie: Alle sandwichpanelen worden standaard geleverd met een beschermfolie op de buitenplaat. Wens je extra bescherming, bestel de folie op de binnenplaat dan als optie. Kijk voor pakketstapelingen in de pdf bij Downloads.
