SAB-Vinex 59/413

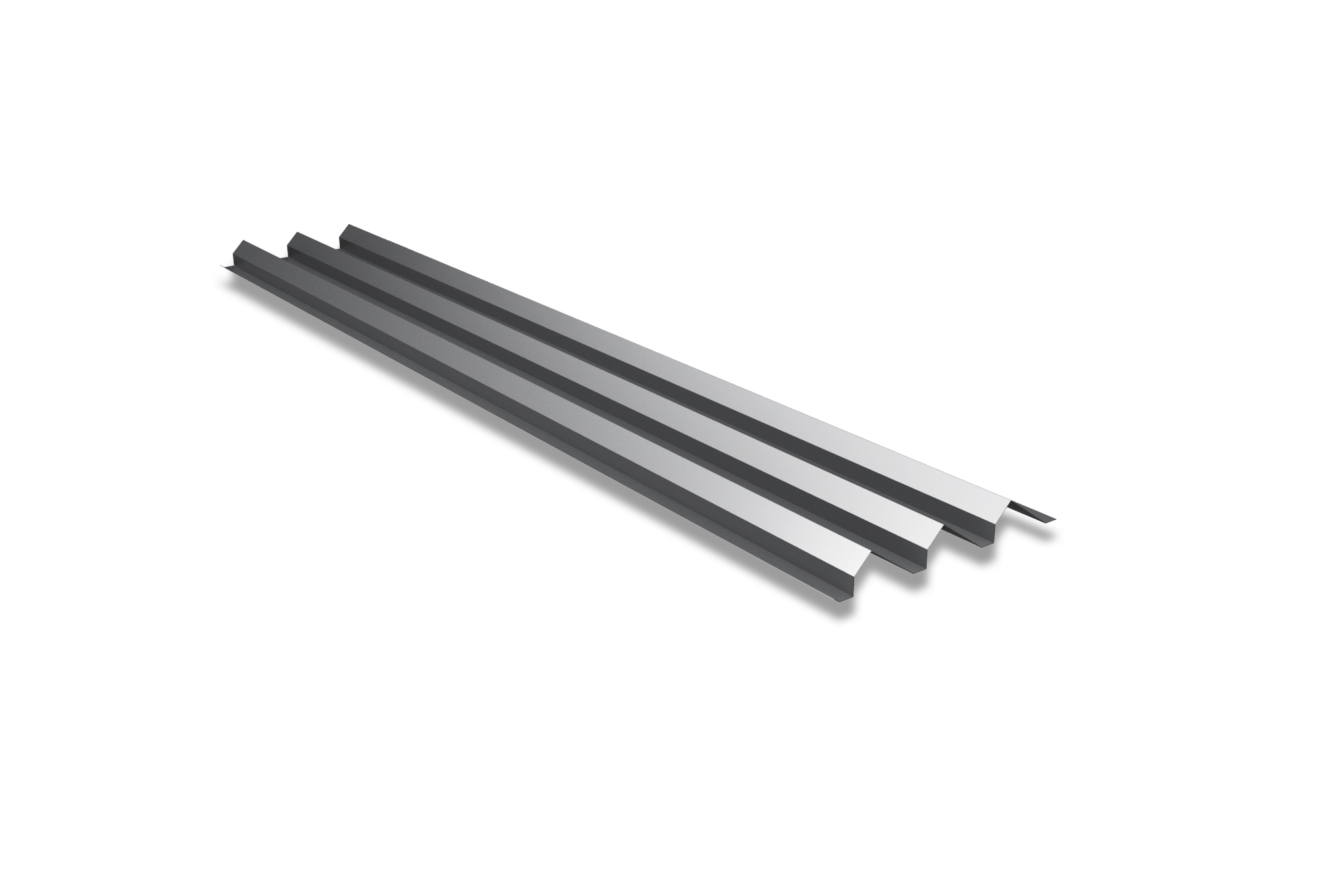

The SAB-Vinex profile is characterized by its asymmetrical shape with beautiful shadow effects. What’s special about this profile is the totally different effect when you look along the facade from the left or right, where the mounting screws hardly stand out. Available in two variants. Developed for vertical application. Also to combine with the SAB-Vinex 42/423.

Request colour samples
Request product samples
Get in touch
Specificaties
Steel
mmkg/m2
0,637,45
0,758,87
0,8810,40
  • Maximum length 6,0 meter
  • Minimum length 0,28 meter
  • SAB advices a maximum load span of 1,50 m for steel
  • The corners of the building need your special attention. The load spans at the corners need to be changed (decrease the distance) and provided with more screws, because of the higher wind load
Downloads
Popular colours Colorcoat Prisma
Anthracite-RAL 7016
(0,50-0,63-0,75 mm)
Black-RAL 9005
(0,63-0,75 mm)
Ephyra
Kronos
Orion (RAL 9007)
Seren Black
(0,75 mm)
Seren Copper
Seren Gold
Sirius (RAL 9006)
White-RAL 9010
(0,50-0,63-0,75 mm)
Zeus
Colour samples
Popular colours Colorcoat HPS200 Ultra
Anthracite (7016)
Black (9005)
Raven (7021)
Colour samples
