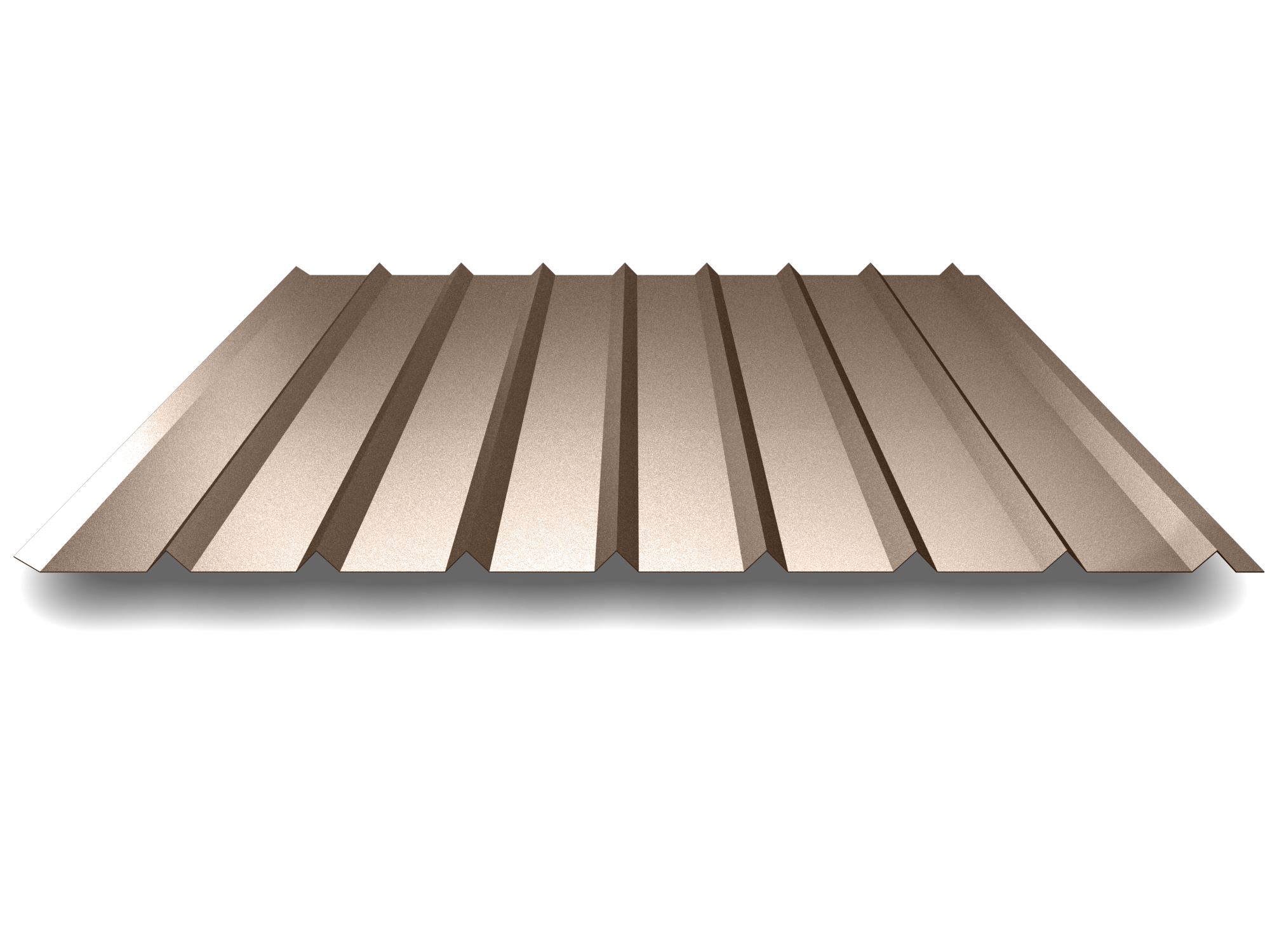

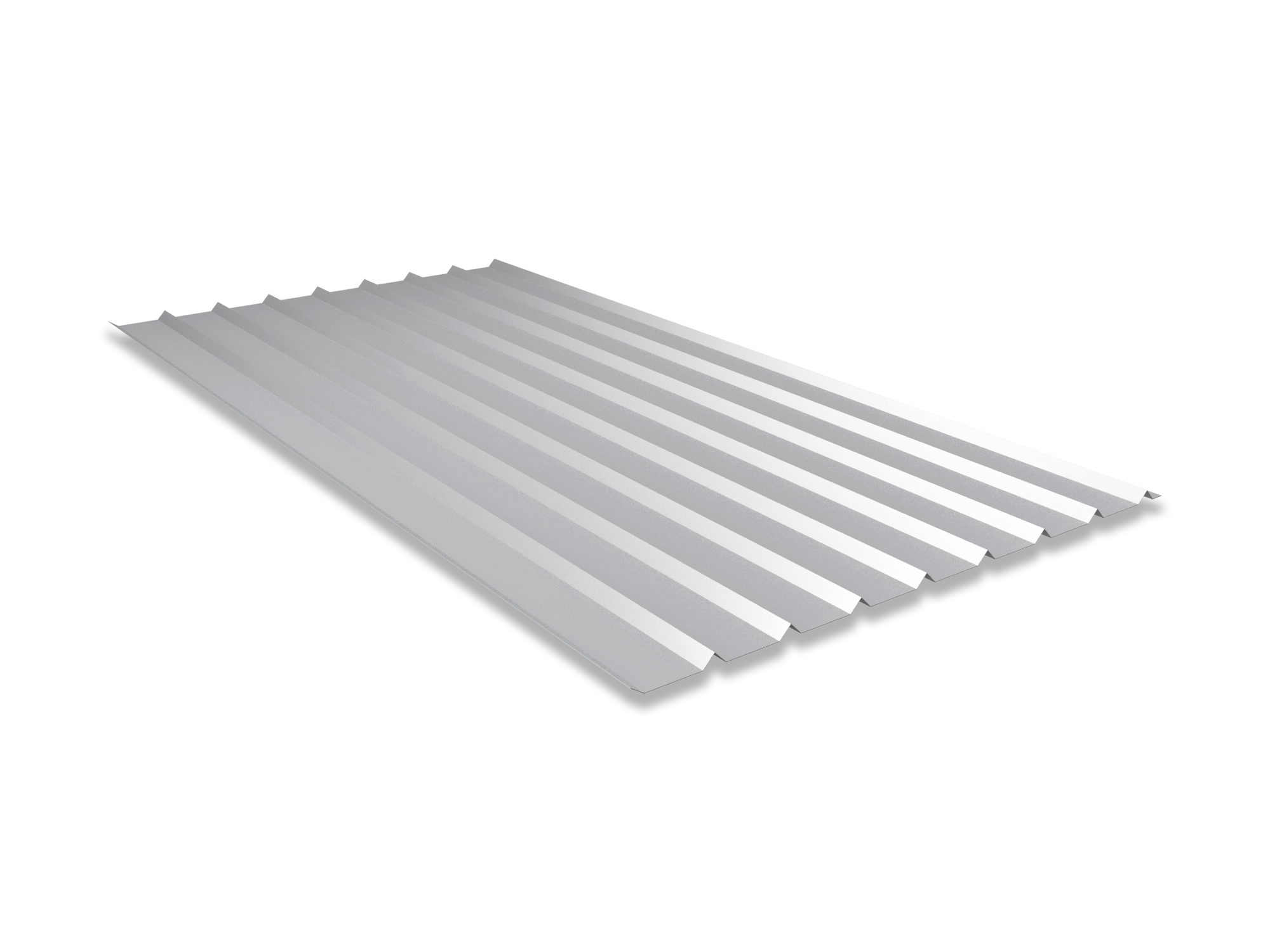

SAB-Pyramid 20/1060

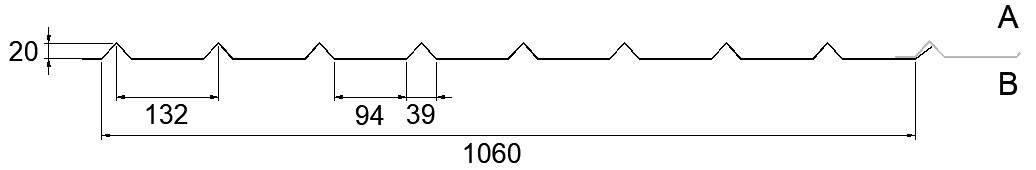

The pyramid profiles from the SAB-pyramid line are available in height of 19, 25, 37 and 50 mm in many colours. Most profiles are available with continuous pyramids or with a flat part in between.

Request colour samples
Request product samples
Get in touch
Specifications
Steel
mmkg/m2
0,756,91
0,888,11
  • Maximum length 6,0 meter
  • Minimum length 0,74 meter
  • SAB advices a maximum load span of 1,50 m for steel
  • The corners of the building need your special attention. The load spans at the corners need to be changed (decrease the distance) and provided with more screws, because of the higher wind load.
Downloads
Popular colours Colorcoat Prisma
Prisma Colorcoat Anthracite (7016)
Anthracite-RAL 7016
(0,50-0,63-0,75 mm)
Prisma Colorcoat Black (9005)
Black-RAL 9005
(0,63-0,75 mm)
Prisma Colorcoat Ephyra M
Ephyra
Prisma colorcoat Pegasus M
Kronos
Prisma colorcoat Pegasus M
Orion (RAL 9007)
Prisma Colorcoat Seren Black E
Seren Black
(0,75 mm)
Prisma Colorcoat Seren Copper E
Seren Copper
Prisma Colorcoat Seren Gold E
Seren Gold
Prisma colorcoat Sirius (9006) M
Sirius (RAL 9006)
Prisma Colorcoat White (9010)
White-RAL 9010
(0,50-0,63 mm)
Prisma colorcoat Zeus M
Zeus
Colour samples
Popular colours Colorcoat HPS200 Ultra
HPS200 Ultra Anthracite
Anthracite (7016)
HPS200 Ultra Black
Black (9005)
HPS200 Ultra Raven
Raven (7021)
Colour samples
