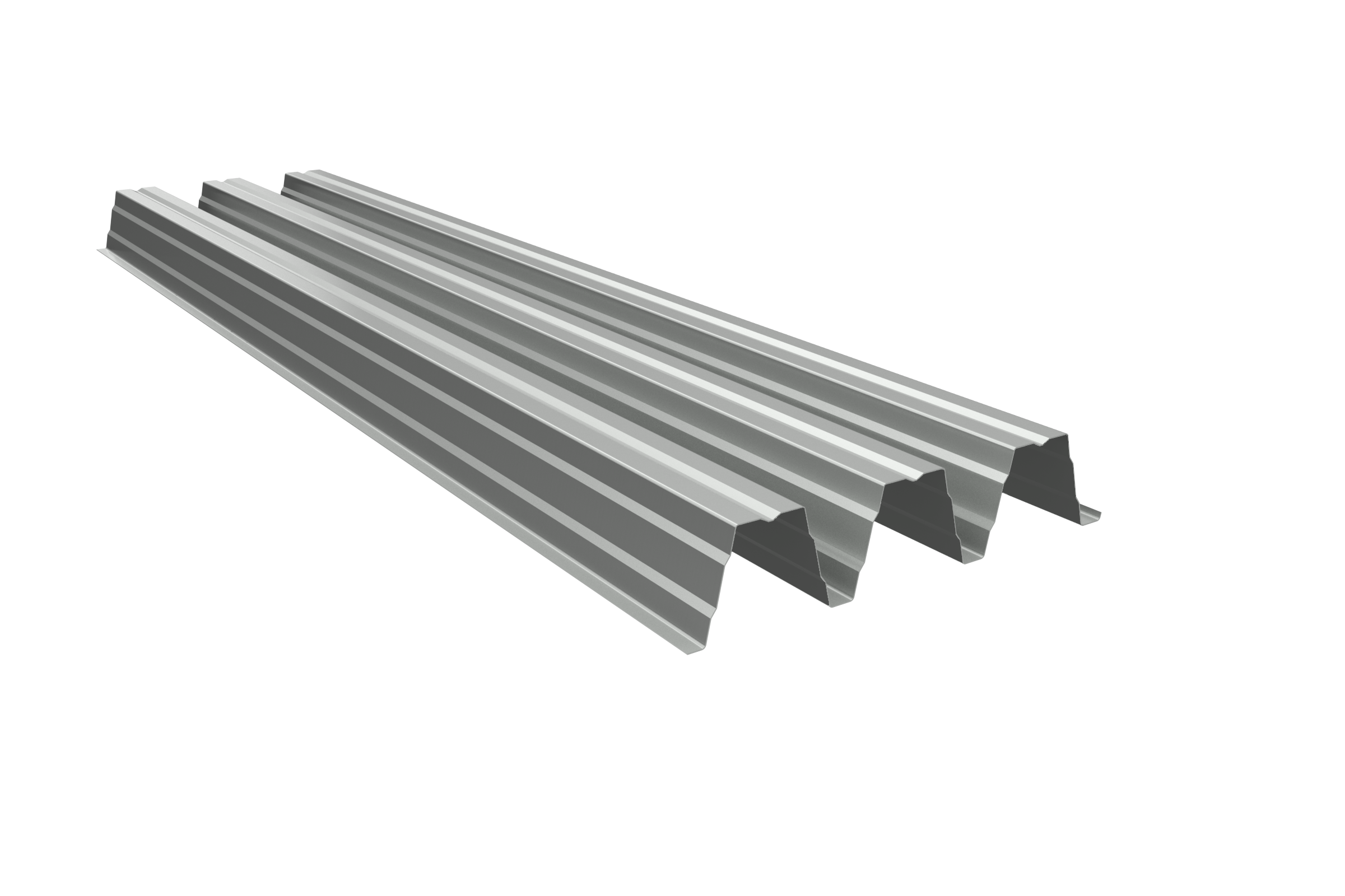

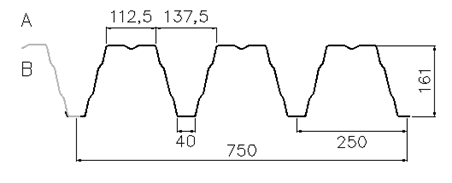

SAB 160R/750

Also available in 350 N/mm2 for even better span.

To ensure that the correct product is used in every (country) situation, we will be pleased to help you with your design of spans, deflections, supports, and wind, snow and temperature loads. For more information you can contact the Product Services department: +31-(0)30 68 79 790.

Or you can use SAB-Static, the free designprogramm for steeldeck, single sheet cladding profiles and liner trays.

Only production in Niederaula (DE).

Request colour samples
Request product samples
Get in touch
Specification
Steel
mmkg/m2
0,7511,78
0,8813,82
1,0015,70
1,1317,74
1,2519,63
1,5023,55
  • Maximum length: 26,4 m
  • Minimum length: 0,6 m
  • Available in 320 and 350 N/mm2
  • Available with perfo (just P3 L-S)
  • Production DE
Downloads
Beliebte Farben Colorcoat HPS200 Ultra
Hamlet-RAL 9002
Hamlet-RAL 9002
(0,5 – 0,63 – 0,75 mm)
Kleurstaal aanvragen
Beliebte Farben Colorcoat PE 25 / Polyester
RAL 7016
RAL 8012
RAL 9002
RAL 9006 M
RAL 9010
Kleurstaal aanvragen
