Unloading of parcels

Only parcels up to 6 metres in length can be unloaded with a forklift. Line the forklift forks to prevent damage to the underside of the panels.

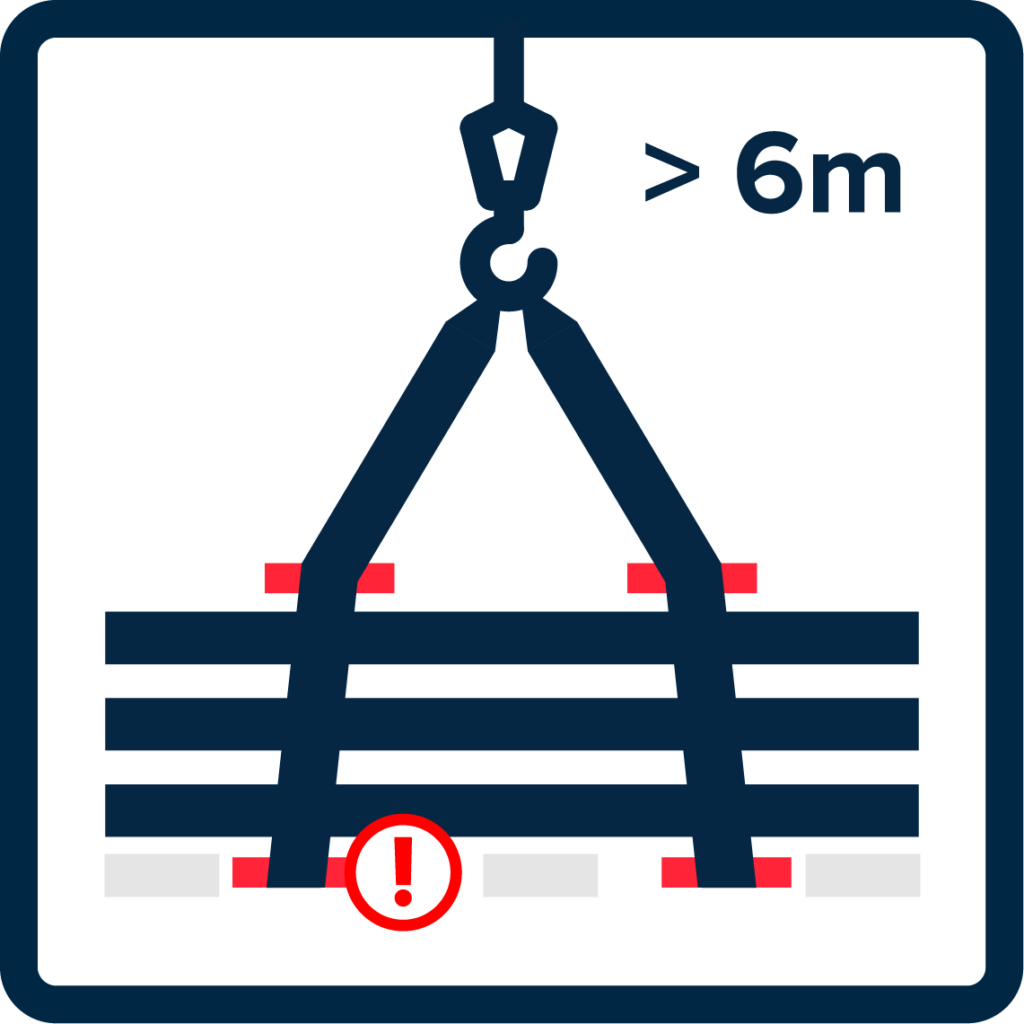

Lifting packages longer than 6 meters

Work with crane, slings and wooden beams. Ropes and chains can damage the panels.

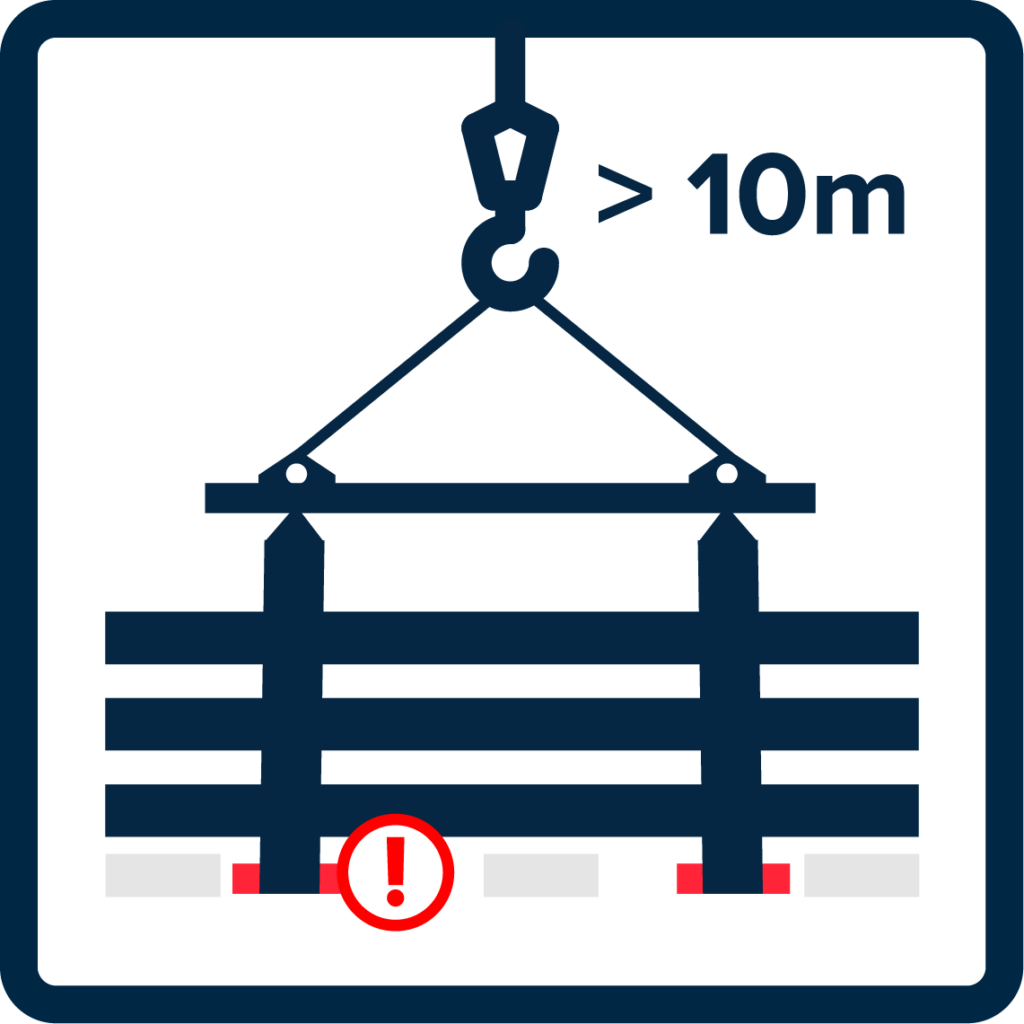

Lifting packages longer than 10 meters

Work with an equator with enough lifting straps. If necessary, apply edge protection and place wooden beams underneath. Ropes and chains can damage the panels

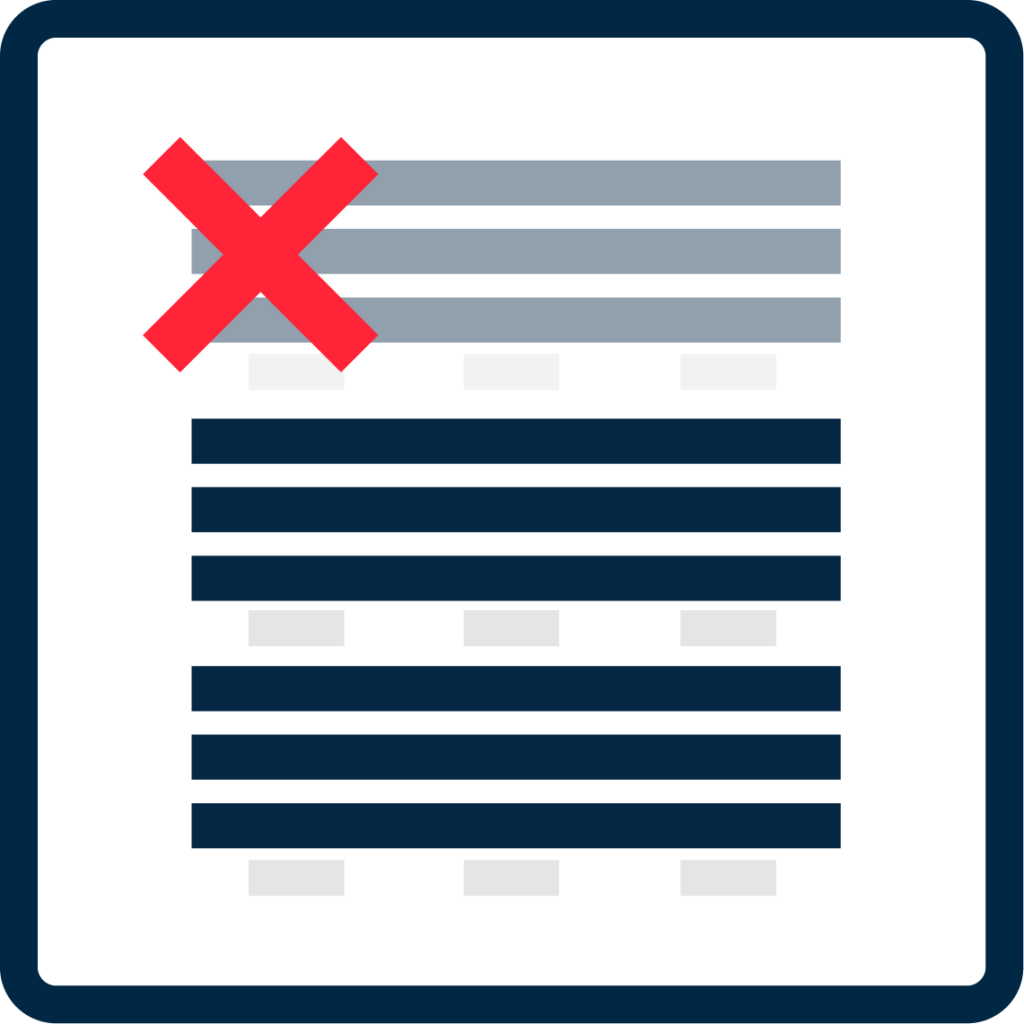

Stacking sandwich panels

Stack sandwich panels up to 2 packages high to avoid pressing.

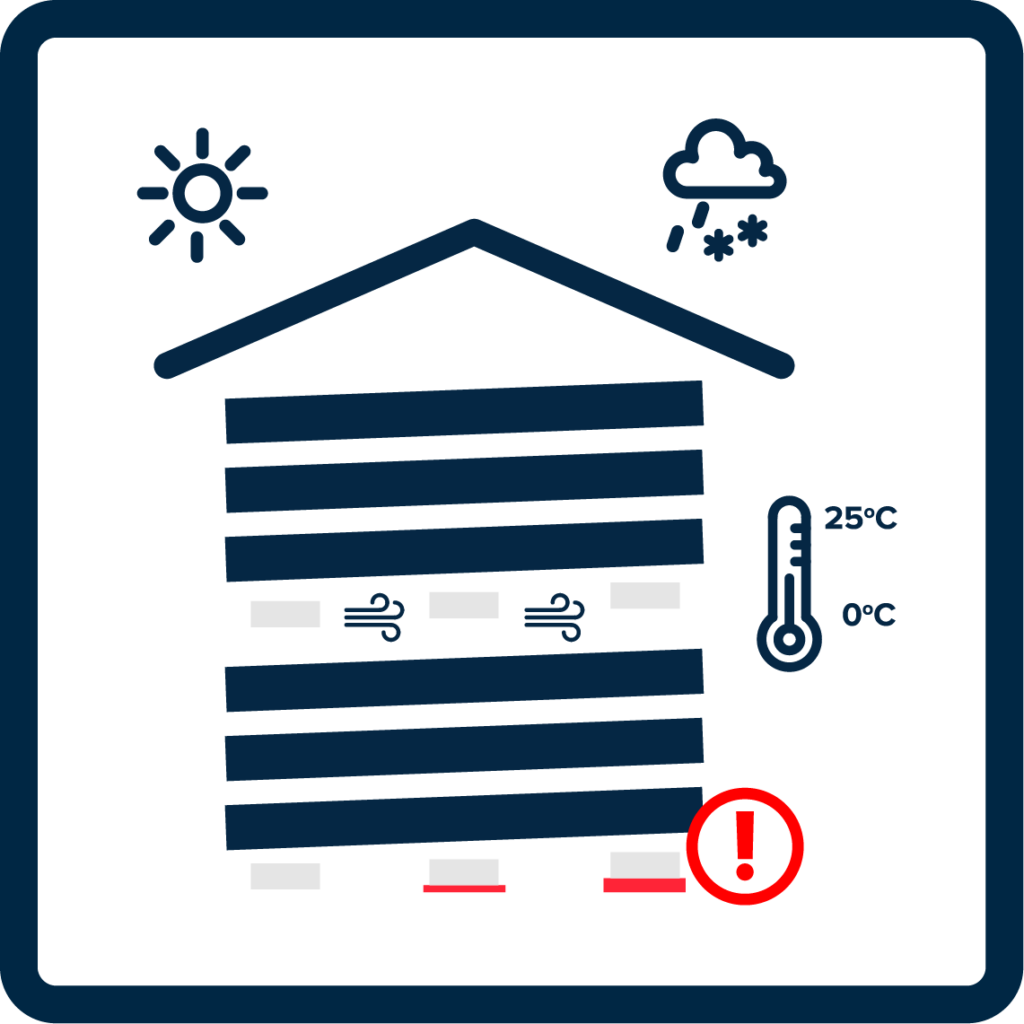

Storing packages

Store packages free of the ground and under slope. Protect packages of tarpaulins from sunlight, rain and pollution. Make sure there is sufficient ventilation (to prevent condensation and white rust). It is also important to protect the packages in case of frost and temperatures above 25 degrees.

Processing sandwich panels

Do not use an angle grinder (grinder) for processing sandwich panels. Machining is only possible with a band saw, special chainsaw or circular saw with the right saw blades. Remove drill and saw residues immediately to prevent burn-in. Avoid drilling and sawing in wet weather.

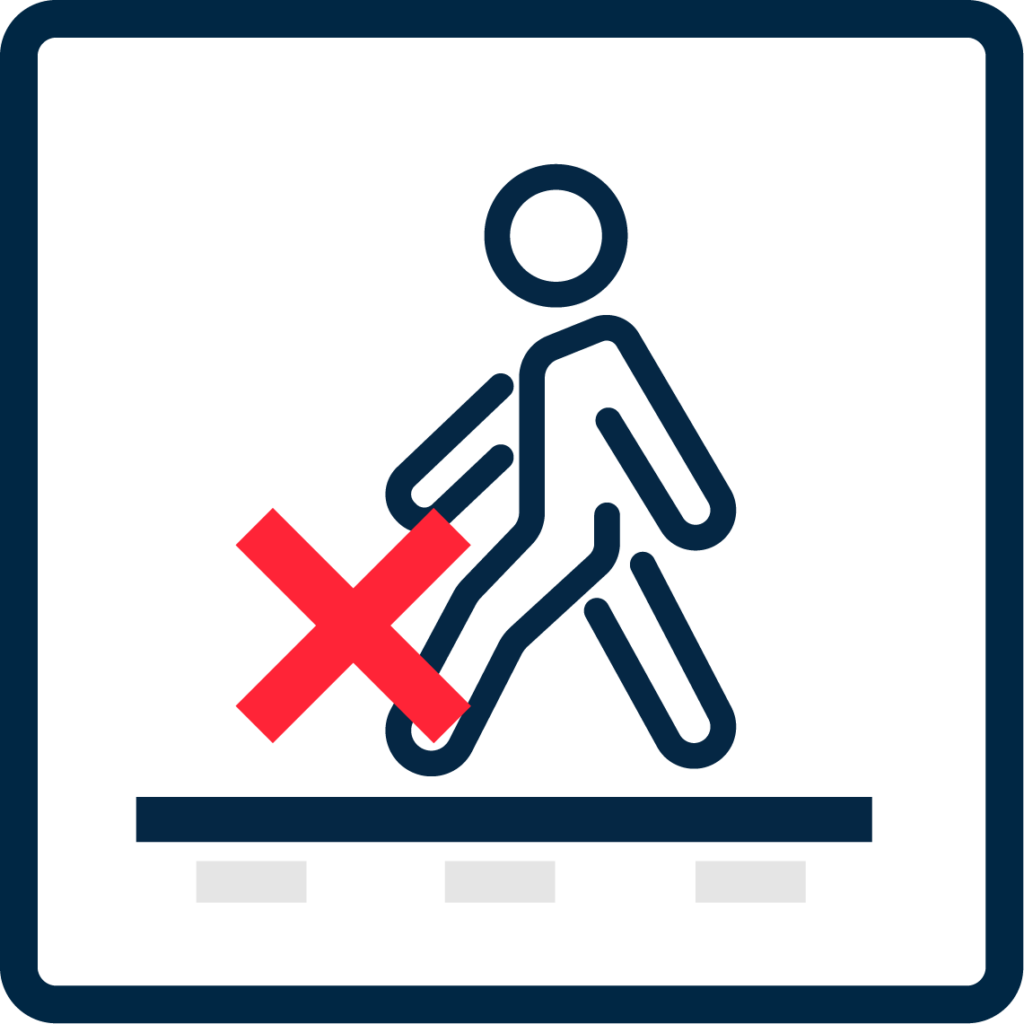

Don’t walk

Do not walk on or stand on the panels.

Protective film

Panels often have a protective film to protect the paintwork. Remove this film within 4 weeks and/or immediately after assembly.

Fastening sandwich panels

In the case of sandwich panels, make sure that the intermediate supports should not be more than 5 mm ‘out of perpendicular’ in relation to the adjacent supports. Prevent panels from becoming hollow.

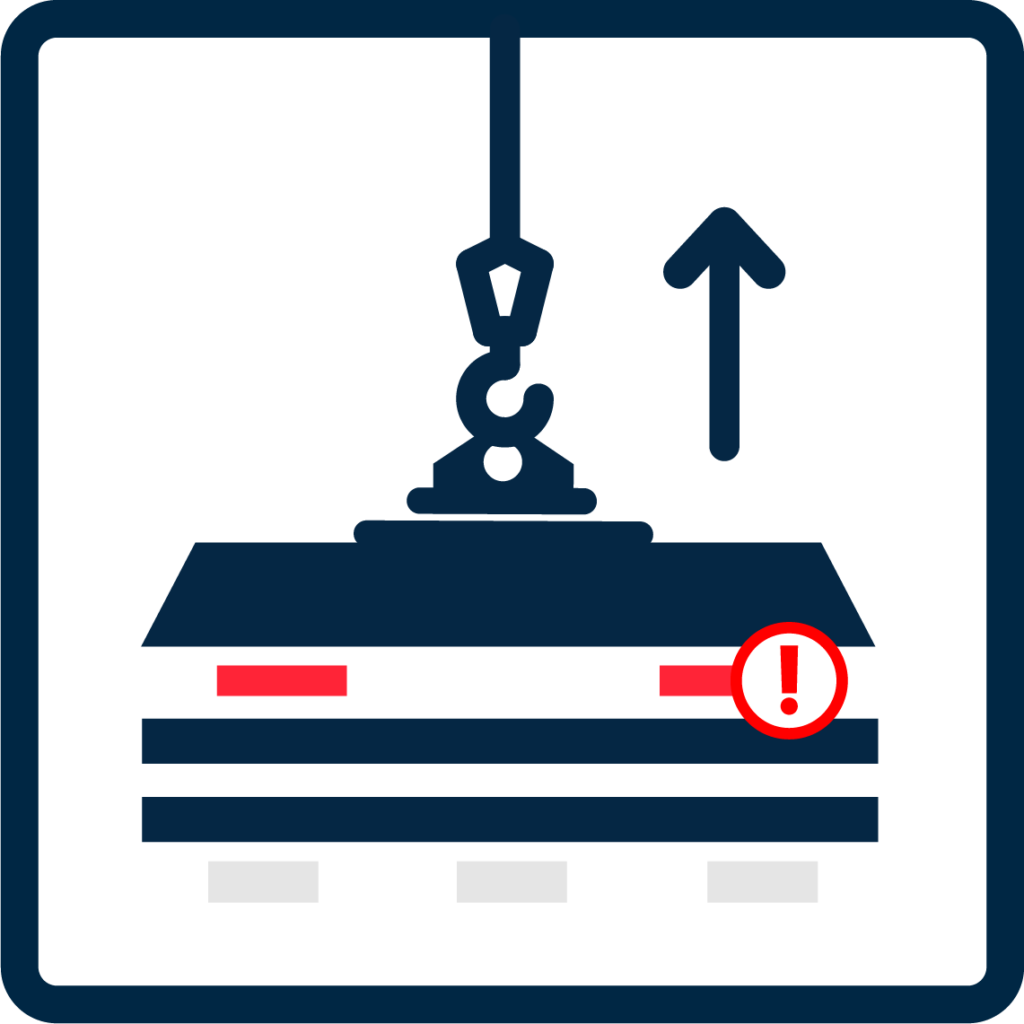

Use Vacuum Lifter

ViaVac, among others, supplies special vacuum lifters for hoisting and assembling sandwich panels. Install protection first so as not to damage the panel underneath.

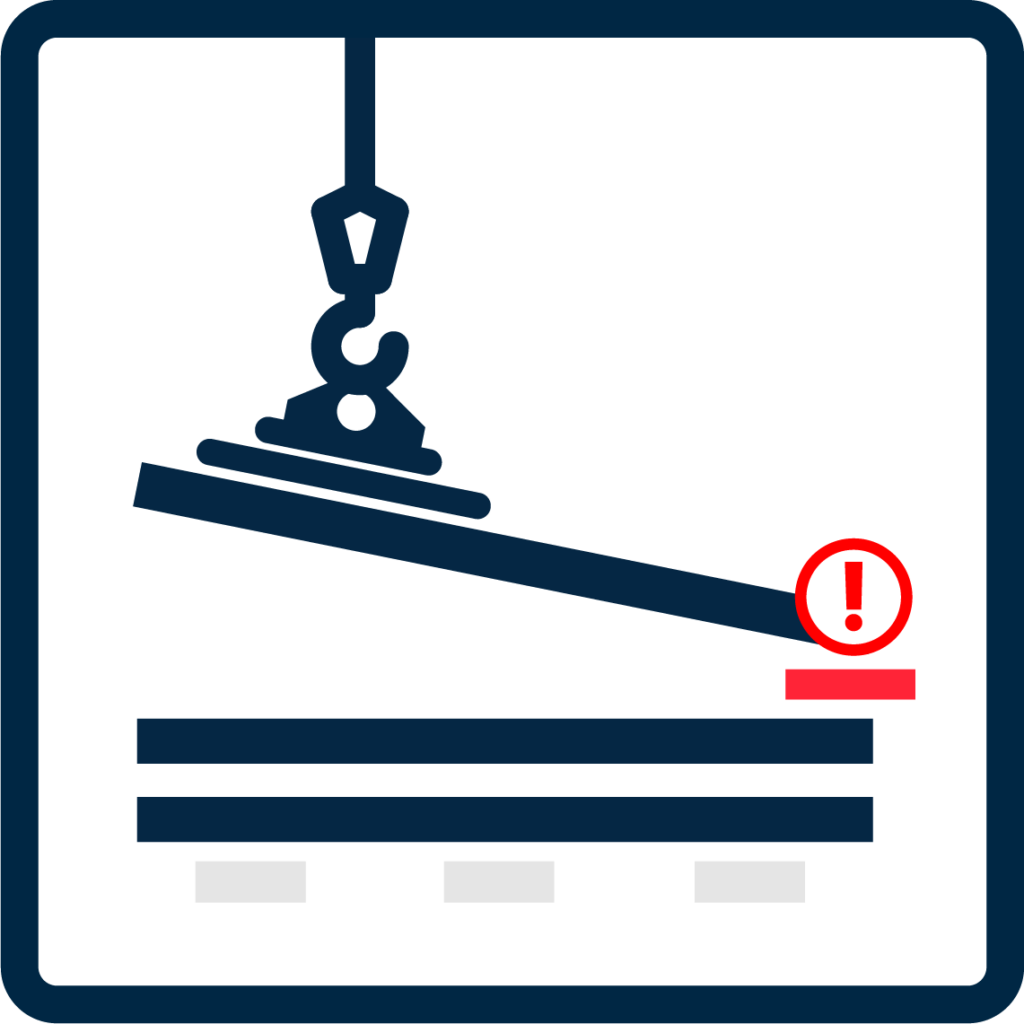

When using vacuum lifter at an oblique angle

ViaVac, among others, supplies special vacuum lifters for hoisting and assembling sandwich panels. Place protection at the end of the panel to prevent damage from sliding.

Keeping it clean

Use a soft brush to remove dirt, saw chips and drill bits immediately.
