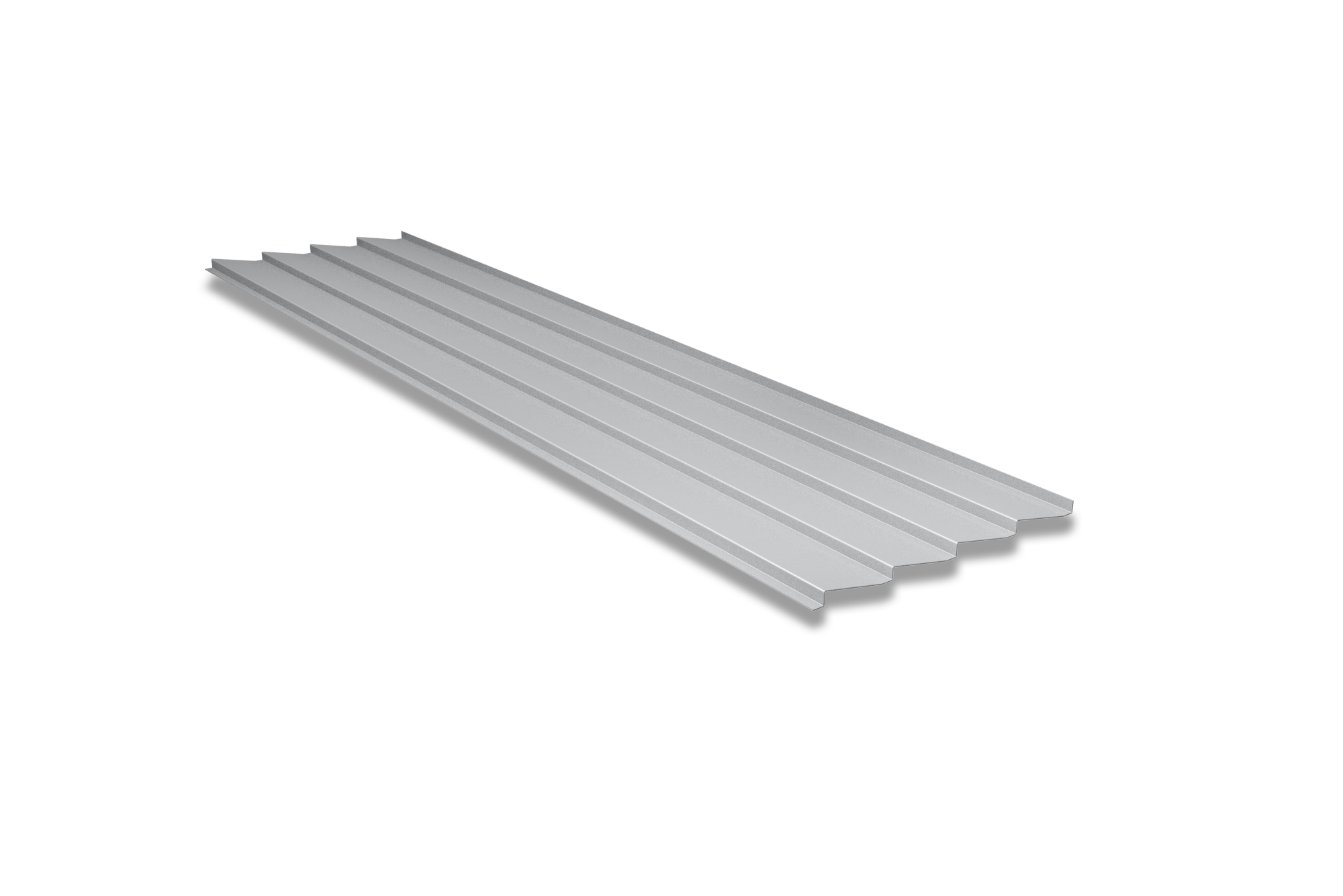

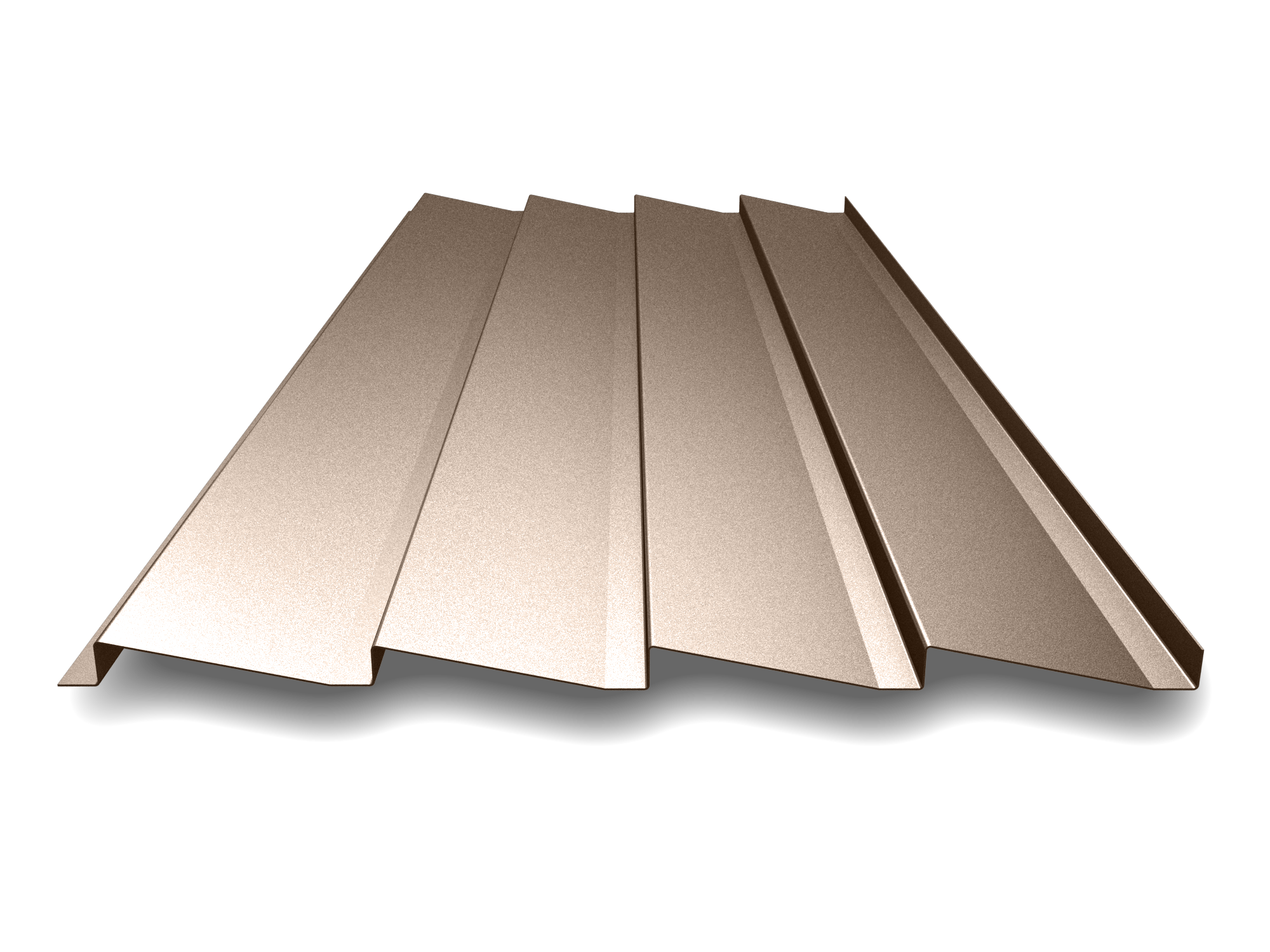

SAB-Tribune 22/500 – 22/1000

The Tribune profile (it was the SAB-PD), also known as the Rabat profile.

Request colour samples
Request product samples
Get in touch
Specifications
Steel
mmkg/m2
0,636,18
0,757,36
0,888,64
  • Maximum length 7,5 meter 22/500 and 6,0 meter 22/1000
  • Minimum length 0,28 meter
  • SAB advices a maximum load span of 1,50 m for steel
  • The corners of the building need your special attention. The load spans at the corners need to be changed (decrease the distance) and provided with more screws, because of the higher wind load.
Downloads
Popular colours Colorcoat Prisma
Anthracite-RAL 7016
(0,50-0,63-0,75 mm)
Black-RAL 9005
(0,63-0,75 mm)
Ephyra
Kronos
Orion (RAL 9007)
Seren Black
(0,75 mm)
Seren Copper
Seren Gold
Sirius (RAL 9006)
White-RAL 9010
(0,50-0,63-0,75 mm)
Zeus
Colour samples
Popular colours Colorcoat HPS200 Ultra
Anthracite (7016)
Black (9005)
Raven (7021)
Colour samples
